STARTECH USB-C POWER TESTER, Bi-DIRECTIONAL DIGITAL VOLTAGE/CURRENT, 2YR
$51.85
Skip to product information

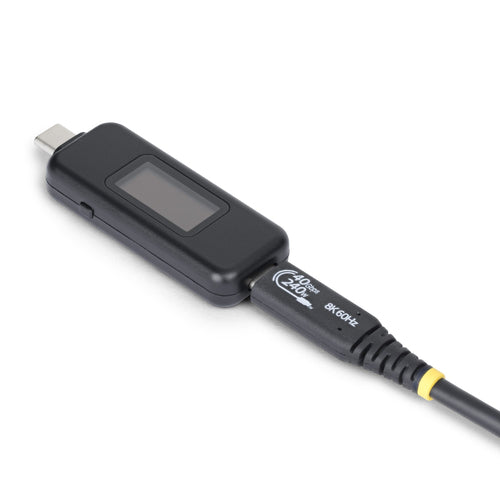

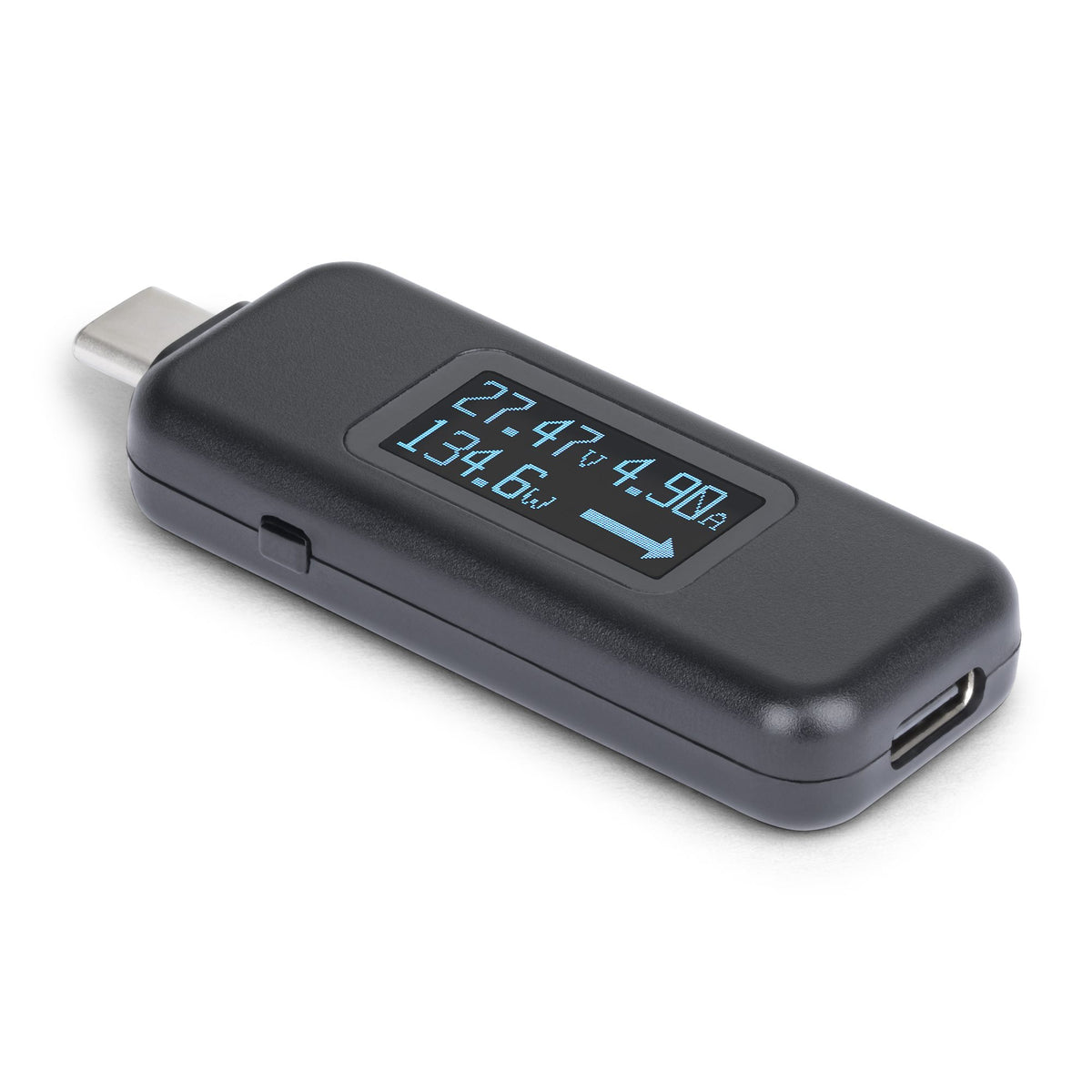

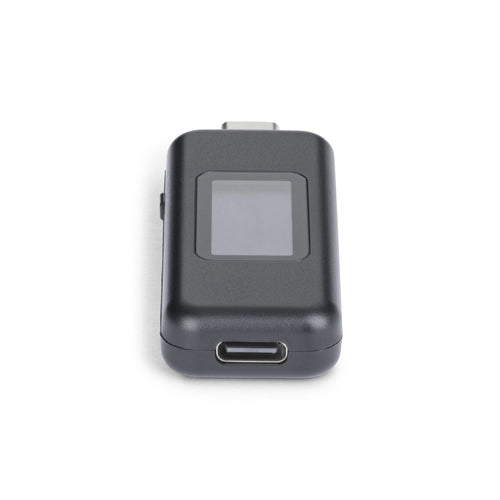

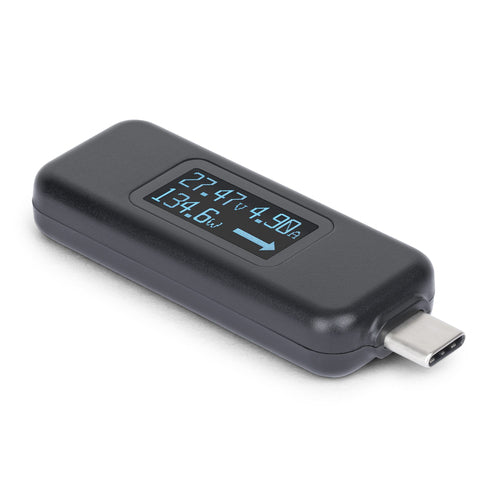

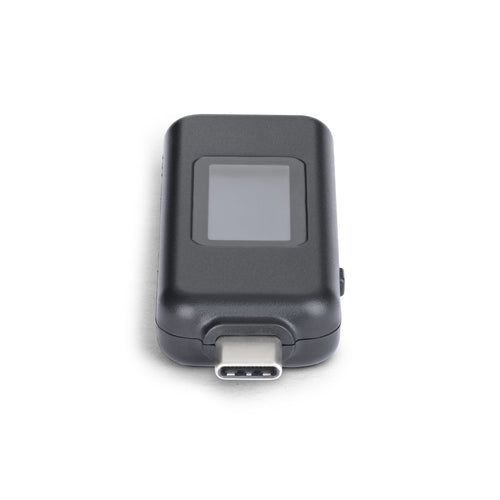

Test and verify USB-C power connections with this compact bi-directional USB-C Power Tester
This bi-directional USB-C Power Tester is a practical tool to accurately monitor voltage, current, and wattage in any USB-C power scenario. It is ideal for technicians and IT pros for immediate, clear test readings anywhere. Use this tester to monitor and maintain reliable performance in power-sensitive setups.
Compact Form Factor
The USB-C Digital Power Tester is compact and suitable for testing mounted USB-C devices or hard-to-reach device ports. Its portable design makes it a lightweight and essential addition to any IT Pro's toolkit.
Streamline Power Diagnostics
This USB-C tester can quickly diagnose power issues with docking stations, hubs, chargers, and connected devices. The digital display provides real-time measurements and rotates 180 degrees with the press of a button, ensuring clear visibility when testing power flow from any direction. Verify if USB-C cables are transferring power efficiently and ensure compliance for devices that require high power output.
Versatile USB-C Compatibility
Supporting USB data pass-through up to 10Gbps and DP Alt Mode video, this Digital USB-C Multimeter accommodates a wide range of USB-C cables and devices. It measures power across a broad operating range of 4.5V to 50V and 50mA to 6.5A, while ensuring compatibility with USB Power Delivery 3.1 Extended Power Range (EPR) up to 240W. Note: Thunderbolt 3 devices are not supported.
STARTECH USB-C POWER TESTER, Bi-DIRECTIONAL DIGITAL VOLTAGE/CURRENT, 2YR
$51.85
USBC-PWRTESTER
This bi-directional USB-C Power Tester is a practical tool to accurately monitor voltage, current, and wattage in any USB-C power scenario. It is ideal for technicians and IT pros for immediate, clear test readings anywhere. Use this tester to monitor and maintain reliable performance in power-sensitive setups.
Compact Form Factor
The USB-C Digital Power Tester is compact and suitable for testing mounted USB-C devices or hard-to-reach device ports. Its portable design makes it a lightweight and essential addition to any IT Pro's toolkit.
Streamline Power Diagnostics
This USB-C tester can quickly diagnose power issues with docking stations, hubs, chargers, and connected devices. The digital display provides real-time measurements and rotates 180 degrees with the press of a button, ensuring clear visibility when testing power flow from any direction. Verify if USB-C cables are transferring power efficiently and ensure compliance for devices that require high power output.
Versatile USB-C Compatibility
Supporting USB data pass-through up to 10Gbps and DP Alt Mode video, this Digital USB-C Multimeter accommodates a wide range of USB-C cables and devices. It measures power across a broad operating range of 4.5V to 50V and 50mA to 6.5A, while ensuring compatibility with USB Power Delivery 3.1 Extended Power Range (EPR) up to 240W. Note: Thunderbolt 3 devices are not supported.
- PORTABLE USB-C POWER TESTING: Measure Voltage, Current, and Wattage in any direction with this bi-directional USB-C Power Tester; Digital display w/180° flip rotation provides real-time at-a-glance readings; Portable design ideal for IT Pros on-the-go
- SIMPLIFY TROUBLESHOOTING: Quickly identify Power Delivery issues between USB-C docking stations, chargers/hubs, and connected devices; Test USB-C cables to ensure full power transmission from USB-C sources; Validate performance of high-power devices
- UNIVERSAL COMPATIBILITY: Supports USB data pass-through up to 10Gbps, including DP Alt Mode video (backward compatible); Measures up to 4.5V-50V/50mA-6.5A operating range, and 240W USB Power Delivery 3.1 Extended Power Range (EPR)
- APPLICATIONS: Test USB-C charging stations, verify power delivery across devices & diagnose port or cable issues; Measure power draw from bus-powered USB-C devices; Ensure USB-C port compliance w/VBUS & voltage drop tests
- SPECS: Bi-directional USB Type-C Male to Female; Digital display with 180° flip rotation; Voltage/Current Range: 4.5V-50V / 50mA-6.5A; Up to 240W USB PD 3.1 EPR; USB 10Gbps Data Pass-Through w/DP Alt Mode; Not compatible with Thunderbolt 3 devices
Specifications
Features
| Testing type | Amperage, Voltage, Wattage |
| DC output voltage test | 4.5V-50V |
| Output current | 6.5 A |
| DC input voltage test | 4.5V-50V |
| Input current | 0.05 - 6.5 A |
| Power connectors supported | USB Type-C |
| Built-in display | Yes |
| Backlight display | Yes |
| Backlight colour | Blue |
| Host interface | USB 3.2 USB Type C |
| Output interface | USB 3.2 USB Type C |
| USB version | 3.2 Gen 2 (3.1 Gen 2) |
| Maximum charging test | 240 W |
| Product colour | Black |
| Housing material | Polycarbonate (PC) |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Width | 57 mm |
| Depth | 23 mm |
| Height | 10 mm |
| Weight | 12 g |
Packaging data
| Package width | 83 mm |
| Package depth | 82 mm |
| Package height | 17 mm |
| Package weight | 28 g |
Technical details
| Compliance certificates | RoHS |
Logistics data
| Master (outer) case width | 430 mm |
| Master (outer) case length | 180 mm |
| Master (outer) case height | 270 mm |
| Products per master (outer) case | 150 pc(s) |
