StarTech.com 4U Universal VESA LCD Monitor Mounting Bracket for 19-inch Rack or Cabinet - TAA Compliant - Cold-Pressed Steel Bracket
Sale price
$117.39
Regular price
$144.31
Skip to product information

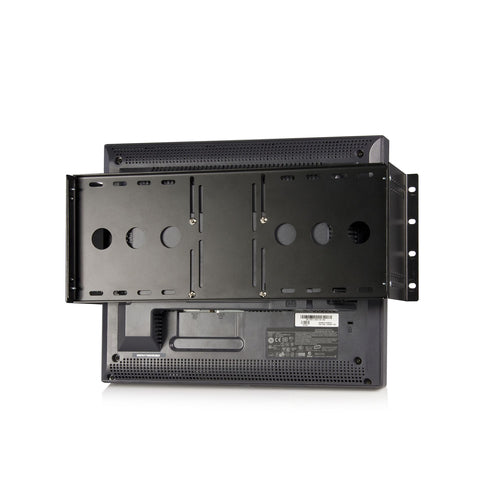

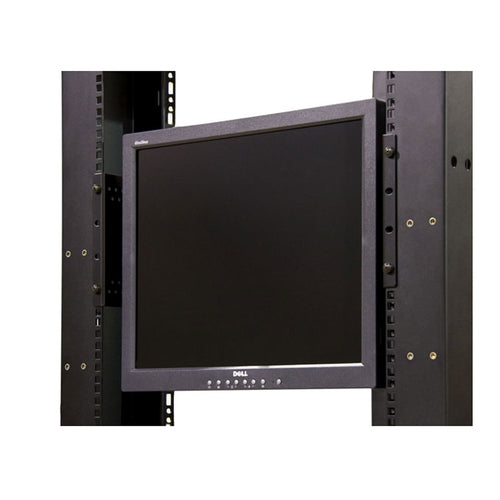

Mount a 17-19 inch LCD panel into a standard 19 inch rack/cabinet
The RKLCDBK Universal VESA LCD Monitor Mounting Bracket for 19in Rack or Cabinet lets you mount almost any retail LCD or Touch screen panel into a server/storage rack/cabinet. This TAA compliant product adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases.
The LCD mounting bracket is made of solid cold pressed steel (SPCC), is designed to support 100mm and 75mm VESA mounted LCD panels, and meets ANSI/EIA RS-310-D standards rack mounting. A unique adjustable design enables an LCD panel to be mounted into the cabinet at various depths - allowing the rack/cabinet door to be closed.
The LCD mounting bracket also supports wall-mounted LCD installation, by inverting the adjustable bracket or by adding this bracket to a wall mount bracket or rack, such as the 6U (10 inch) Wallmount Bracket for 19" Rack Equipment (WALLMOUNT6) or 8U Open Frame Wall Mount Equipment Rack (RK812WALLO).
Backed by a StarTech.com Lifetime warranty.
StarTech.com 4U Universal VESA LCD Monitor Mounting Bracket for 19-inch Rack or Cabinet - TAA Compliant - Cold-Pressed Steel Bracket
Sale price
$117.39
Regular price
$144.31
RKLCDBK
The RKLCDBK Universal VESA LCD Monitor Mounting Bracket for 19in Rack or Cabinet lets you mount almost any retail LCD or Touch screen panel into a server/storage rack/cabinet. This TAA compliant product adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases.
The LCD mounting bracket is made of solid cold pressed steel (SPCC), is designed to support 100mm and 75mm VESA mounted LCD panels, and meets ANSI/EIA RS-310-D standards rack mounting. A unique adjustable design enables an LCD panel to be mounted into the cabinet at various depths - allowing the rack/cabinet door to be closed.
The LCD mounting bracket also supports wall-mounted LCD installation, by inverting the adjustable bracket or by adding this bracket to a wall mount bracket or rack, such as the 6U (10 inch) Wallmount Bracket for 19" Rack Equipment (WALLMOUNT6) or 8U Open Frame Wall Mount Equipment Rack (RK812WALLO).
Backed by a StarTech.com Lifetime warranty.

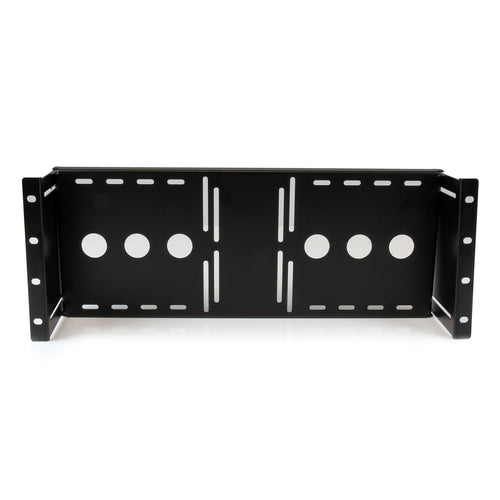

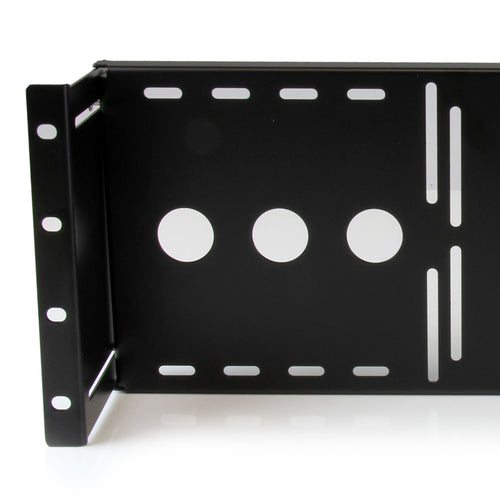

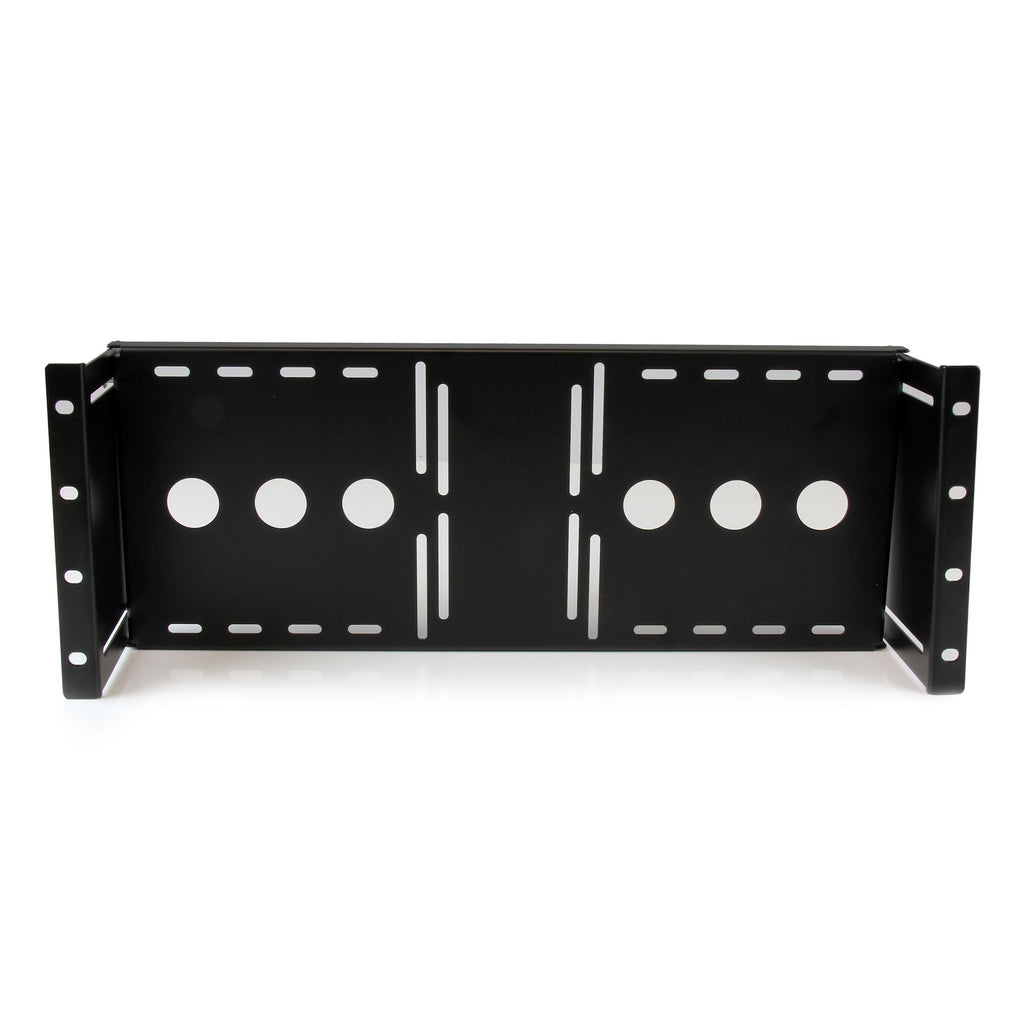

- STURDY DESIGN: The LCD mounting bracket made of solid cold pressed steel (SPCC), is designed to support 100mm & 75mm VESA mounted LCD panels, and meets ANSI/EIA RS-310-D standards rack mounting
- ADJUSTABLE DEPTH: A unique adjustable design enables an LCD panel to be mounted into the AV rack cabinet at various depths, allowing the rack/cabinet door to be closed

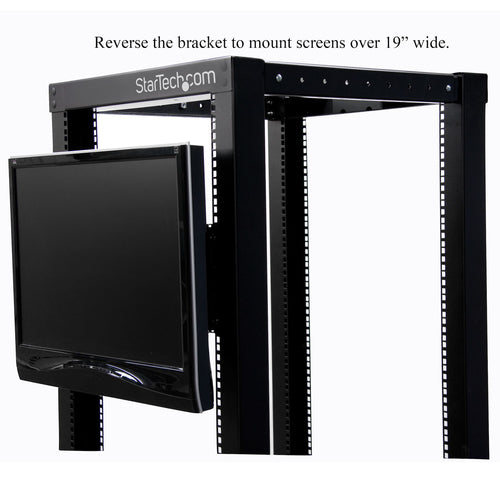

- ADDED FUNCTIONALITY: The rackmount monitor bracket supports wall-mounted LCD installations by inverting or adding this bracket to a wall mount bracket or rack, such as the 6U Wall mount Bracket
- TAA COMPLIANT: This TAA compliant Universal VESA LCD Monitor Mounting Bracket adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this LCD mounting bracket is backed for life, including free lifetime 24/5 multi-lingual technical assistance
Specifications
Features
| Type | Mounting bracket |
| Product colour | Black |
| Housing material | Steel |
| Rack capacity | 4U |
| Compliance industry standards | EIA RS310-D |
| Certification | CE, REACH, TAA |
Weight & dimensions
| Width | 842 mm |
| Depth | 107.5 mm |
| Height | 177 mm |
| Mounting depth (min) | 0 mm |
| Mounting depth (max) | 8.89 cm |
| Weight | 1.7 kg |
Packaging data
| Package width | 469 mm |
| Package depth | 201 mm |
| Package height | 53 mm |
| Package weight | 2 kg |
Packaging content
| Mounting kit | Yes |
| Quick installation guide | Yes |
| Screws included | Yes |
| Screw type | M5, M4 |
| Number of screws | 16 |
| Nuts included | Yes |
| Number of nuts | 8 |
| Washers included | Yes |
| Number of washers included | 4 |
Technical details
| Compliance certificates | RoHS |
Logistics data
| Master (outer) case width | 524 mm |
| Master (outer) case length | 187 mm |
| Master (outer) case height | 590 mm |
| Products per master (outer) case | 156 pc(s) |
| Harmonized System (HS) code | 85389099 |
