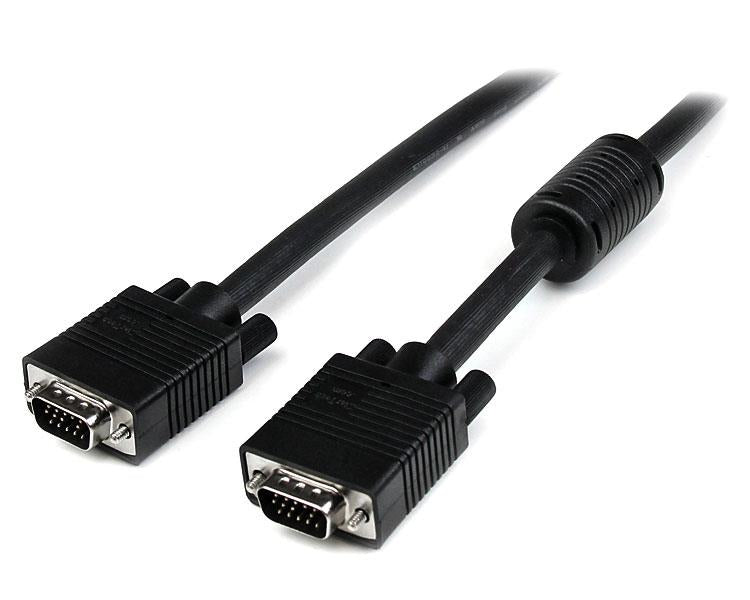

StarTech.com 5m Coax High Resolution Monitor VGA Video Cable - HD15 to HD15 M/M
Sale price
$31.57
Regular price
$34.94
Skip to product information
Connect your VGA monitor with the highest quality connection available
The MXTMMHQ5M High Resolution VGA Cable (5-meter) is designed to provide the highest video quality possible through VGA, ideally suited for high resolution applications of 1920x1200 and above.
This durably constructed coaxial VGA video cable (HD15 to HD15) eliminates the picture "ghosting" and fuzzy images that are inherent to non-coaxial VGA cables, while delivering superior EMI interference protection by using ferrite cores near the connector ends.
StarTech.com 5m Coax High Resolution Monitor VGA Video Cable - HD15 to HD15 M/M
Sale price
$31.57
Regular price
$34.94
MXTMMHQ5M
The MXTMMHQ5M High Resolution VGA Cable (5-meter) is designed to provide the highest video quality possible through VGA, ideally suited for high resolution applications of 1920x1200 and above.
This durably constructed coaxial VGA video cable (HD15 to HD15) eliminates the picture "ghosting" and fuzzy images that are inherent to non-coaxial VGA cables, while delivering superior EMI interference protection by using ferrite cores near the connector ends.
- Triple coaxial + twisted-pair wire for crystal clear display
- Durably constructed cable, with high quality HD15 connectors
- Impedance matched at 75 Ohms for full brightness and vibrant picture color from your VGA monitor
- High quality VGA connectors with molded PVC strain relief
Specifications
Features
| Cable length | 5 m |
| Connector 1 | VGA (D-Sub) |
| Connector 2 | VGA (D-Sub) |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Product colour | Black |
| Maximum resolution | 1920 x 1200 pixels |
| Connector contacts plating | Nickel |
Operational conditions
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Weight | 500 g |
Packaging data
| Package width | 200 mm |
| Package depth | 220 mm |
| Package height | 87 mm |
| Package weight | 564 g |
Logistics data
| Harmonized System (HS) code | 84733080 |
| Master (outer) case width | 362 mm |
| Master (outer) case length | 436 mm |
| Master (outer) case height | 272 mm |
| Products per master (outer) case | 30 pc(s) |
