StarTech.com 24 Port 1U Rackmount Cat 6 110 Patch Panel
Sale price
$165.69
Regular price
$177.00
Skip to product information
Organize up to 24 Cat6 patch cables
The C6PANEL24 24-port 110-type Rack Mount Cat 6 Patch Panel is color coded for both T568A and T568B wiring providing the perfect solution for any voice or LAN application.
For hassle-free connections, the patch panel offers straight Cat 6 ports with 110-type termination, making it easy to insert and remove your cables. The 24-port patch panel also offers a quick and easy way to identify your cable runs, with port numbers clearly marked on the back of each RJ45 port, and a writeable/erasable marking surface for each port on the front of the panel for efficient system management.
Durably constructed of only top quality materials, this 24-port Network Patch Panel is backed by StarTech.com’s 2-year warranty.
StarTech.com 24 Port 1U Rackmount Cat 6 110 Patch Panel
Sale price
$165.69
Regular price
$177.00
C6PANEL24
The C6PANEL24 24-port 110-type Rack Mount Cat 6 Patch Panel is color coded for both T568A and T568B wiring providing the perfect solution for any voice or LAN application.
For hassle-free connections, the patch panel offers straight Cat 6 ports with 110-type termination, making it easy to insert and remove your cables. The 24-port patch panel also offers a quick and easy way to identify your cable runs, with port numbers clearly marked on the back of each RJ45 port, and a writeable/erasable marking surface for each port on the front of the panel for efficient system management.
Durably constructed of only top quality materials, this 24-port Network Patch Panel is backed by StarTech.com’s 2-year warranty.

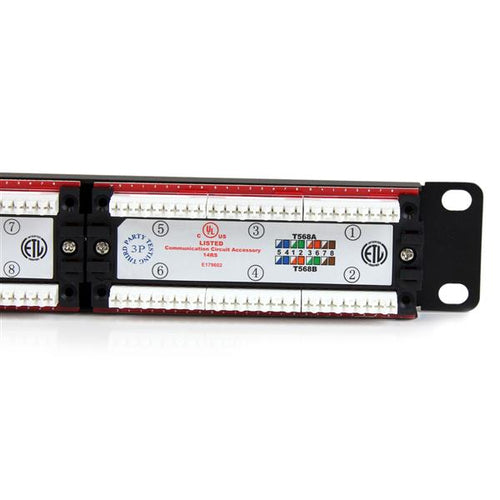

- Color coded for both T568A and T568B installations
- Terminated using 110-type punch tool
- Supports both Cat5e and Cat6 cables
- Writable and erasable marking surfaces for each port
- Meeting the ANSI/TIA-568-C.2 Category 6, ISO/IEC11801 and EN50173-1 specification
Specifications
Network
| Ports quantity | 24 |
| Connector(s) | RJ-45 |
Design
| Product colour | Black |
| Mounting | Rack mounting |
| Rack capacity | 1U |
Certificates
| Compliance certificates | RoHS |
| Certification | CE, ETl, UL |
Operational conditions
| Operating temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 10 - 65% |
Weight & dimensions
| Width | 483 mm |
| Height | 34 mm |
| Depth | 44 mm |
| Weight | 581 g |
Packaging data
| Package width | 491 mm |
| Package depth | 59 mm |
| Package height | 47 mm |
| Package weight | 678 g |
Logistics data
| Harmonized System (HS) code | 85371098 |
| Master (outer) case width | 516 mm |
| Master (outer) case length | 255 mm |
| Master (outer) case height | 268 mm |
| Products per master (outer) case | 20 pc(s) |
