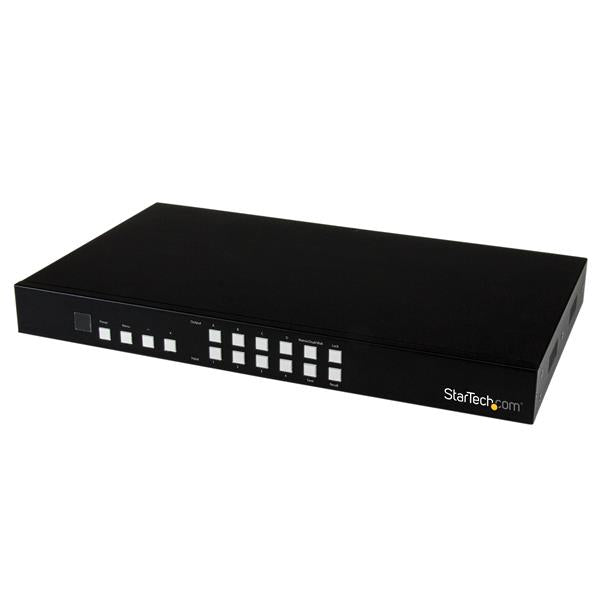

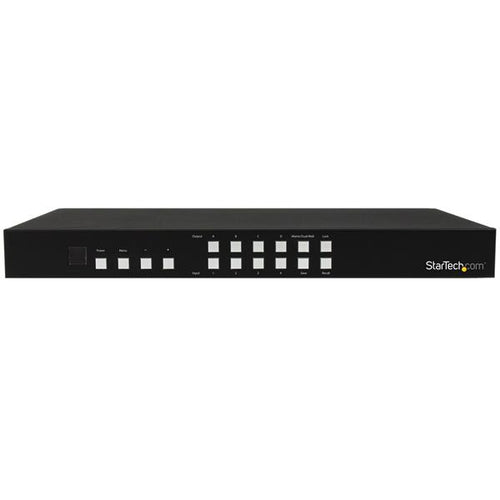

StarTech.com 4x4 HDMI Matrix Switch with Picture-and-Picture Multiviewer or Video Wall - TAA
Sale price
$1,596.56
Regular price
$3,252.69
Skip to product information
Share and switch four distinct HDMI audio/video sources between four HDMI displays, with optional Picture-and-Picture
The VS424HDPIP 4X4 HDMI Matrix Switch with Picture-and-Picture (PAP) gives you the power to seamlessly combine and distribute four HDMI audio/video sources across four different HDMI displays, with the added ability to combine multiple images on the same display.
See the Whole Picture

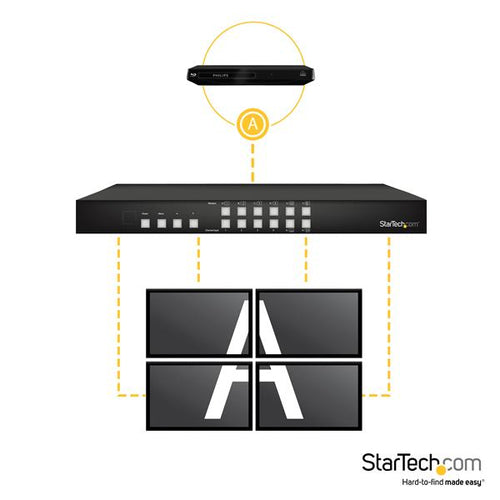

The split-screen multiplexing switch combines the flexibility of a matrix switch with the scalability of a video wall, giving you the freedom to combine video sources on a single display. You can also distribute different video combinations independently across four individual displays. The switch offers full matrix configuration supporting four different picture-and-picture modes per display: Matrix Mode (1x1) / Dual Mode (2x1) / Quad Mode (4x1) / TV Wall Mode (1x4).
Control Your Output
Fitting your boardroom or digital signage application with a VS424HDPIP dramatically increases your communication possibilities. Not only does the picture-and-picture matrix switch increase your communication by a factor of four per display, but it also enables you to adjust your video sources remotely using your local TCP/IP network, or the included IR remote control.
Increase the Versatility of Your Displays
The VS424HDPIP is a flexible video switch that can improve any video display application. The picture-and-picture technology enables you to share up to four distinct images on the same screen, reducing required video real estate and saving you from wasting money on additional displays in your digital signage applications. For security monitoring, you can combine four video sources onto a single display to view everything more efficiently and broadcast those feeds to four different displays in different locations -- you can even zoom into to a single feed for a closer look without disrupting the remaining three displays. For versatile installation options, mounting hardware is included ensuring a tidy and professional installation.
The VS424HDPIP is backed by a StarTech.com 2-year warranty and free lifetime technical support.
StarTech.com 4x4 HDMI Matrix Switch with Picture-and-Picture Multiviewer or Video Wall - TAA
Sale price
$1,596.56
Regular price
$3,252.69
VS424HDPIP
The VS424HDPIP 4X4 HDMI Matrix Switch with Picture-and-Picture (PAP) gives you the power to seamlessly combine and distribute four HDMI audio/video sources across four different HDMI displays, with the added ability to combine multiple images on the same display.
See the Whole Picture
The split-screen multiplexing switch combines the flexibility of a matrix switch with the scalability of a video wall, giving you the freedom to combine video sources on a single display. You can also distribute different video combinations independently across four individual displays. The switch offers full matrix configuration supporting four different picture-and-picture modes per display: Matrix Mode (1x1) / Dual Mode (2x1) / Quad Mode (4x1) / TV Wall Mode (1x4).
Control Your Output
Fitting your boardroom or digital signage application with a VS424HDPIP dramatically increases your communication possibilities. Not only does the picture-and-picture matrix switch increase your communication by a factor of four per display, but it also enables you to adjust your video sources remotely using your local TCP/IP network, or the included IR remote control.
Increase the Versatility of Your Displays
The VS424HDPIP is a flexible video switch that can improve any video display application. The picture-and-picture technology enables you to share up to four distinct images on the same screen, reducing required video real estate and saving you from wasting money on additional displays in your digital signage applications. For security monitoring, you can combine four video sources onto a single display to view everything more efficiently and broadcast those feeds to four different displays in different locations -- you can even zoom into to a single feed for a closer look without disrupting the remaining three displays. For versatile installation options, mounting hardware is included ensuring a tidy and professional installation.
The VS424HDPIP is backed by a StarTech.com 2-year warranty and free lifetime technical support.
- Increase your communication power by linking four HDMI audio/video sources with four HDMI displays
- Get the whole picture by outputting multiple inputs on the same display or mix-and-match inputs across multiple displays
- Save cost and screen real estate by combining multiple inputs per individual display with Full Matrix Picture-and-Picture support
- Mounting hardware included
- Support for video resolutions up to 1920x1200 / 1080p

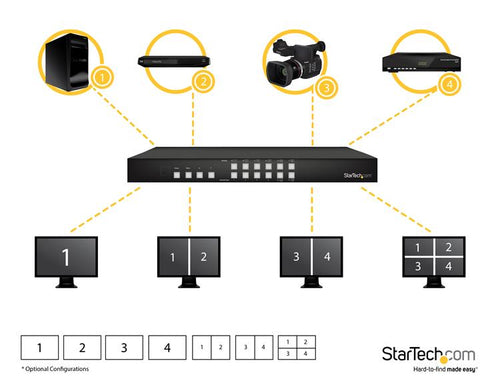

- Full matrix configuration supporting four different picture-and-picture modes per display: Matrix Mode (1x1) / Dual Mode (2x1) / Quad Mode (4x1) / TV Wall Mode (1x4)
- Remote control using RS232 (serial), Telnet (TCIP/IP Network), or IR (remote control included)
- Choose which audio source is outputted with your combined video sources
Specifications

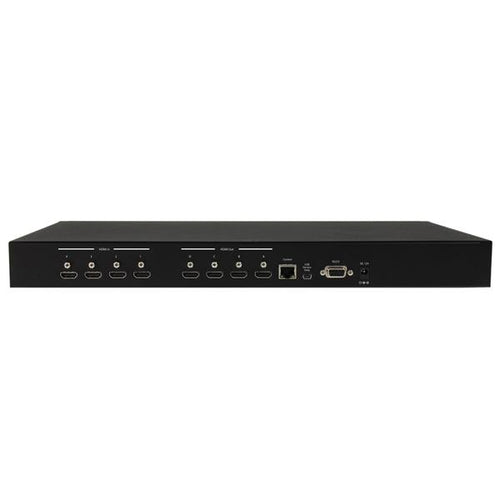

Ports & interfaces
| Video port type | HDMI |
| HDMI ports quantity | 8 |
| HDMI in | 4 |
| Number of HDMI outputs | 4 |
| RJ-45 input ports | 1 |
| RS-232 ports | 1 |
Features
| Material | Aluminium |
| Product colour | Black |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 640 x 480 (VGA) |
| Supported video modes | 1080p, 720p |
| LED indicators | Yes |
| Maximum resolution | 1920 x 1200 pixels |
| Remote control type | RS232, Telnet, IR |
| Audio output channels | 7.1 channels |
| HD type | Full HD |
Power
| AC adapter input voltage | 100 - 240 V |
| AC adapter input current | 1 A |
| AC adapter output voltage | 12 V |
| AC adapter output current | 3 A |
Certificates
| Certification | CE, FCC, TAA |
Weight & dimensions
| Width | 250 mm |
| Depth | 436 mm |
| Height | 49 mm |
| Weight | 2.8 kg |
| Dimensions (WxDxH) | 250 x 436 x 49 mm |
Packaging data
| Package width | 414 mm |
| Package depth | 576 mm |
| Package height | 144 mm |
| Package weight | 4.3 kg |
Packaging content
| Remote control included | Yes |
| Manual | Yes |
| AC adapter included | Yes |
| Software CD | Yes |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
