StarTech.com 2 Port USB A Female Slot Plate Adapter
$16.90
Skip to product information
Provides two USB port connections to a motherboard

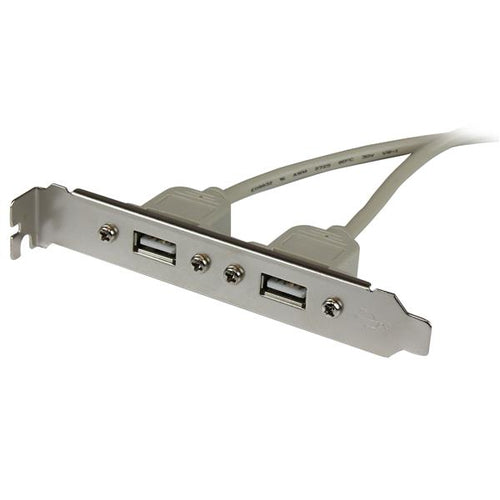

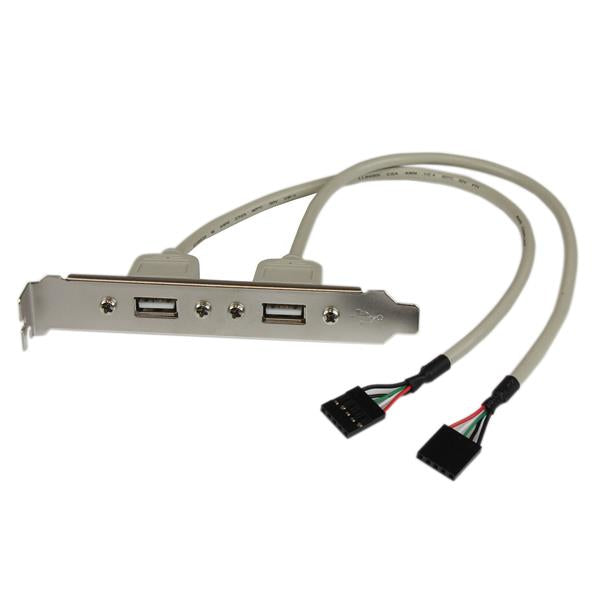

The USBPLATE 2 Port USB A Slot Plate converts the USB pins from most AT style Pentium (and newer) motherboards to 2 standard USB A-Style ports. The plate can be mounted on the rear panel of a computer case, adding two USB A female ports for simple connection to USB peripheral devices.
StarTech.com 2 Port USB A Female Slot Plate Adapter
$16.90
USBPLATE
The USBPLATE 2 Port USB A Slot Plate converts the USB pins from most AT style Pentium (and newer) motherboards to 2 standard USB A-Style ports. The plate can be mounted on the rear panel of a computer case, adding two USB A female ports for simple connection to USB peripheral devices.

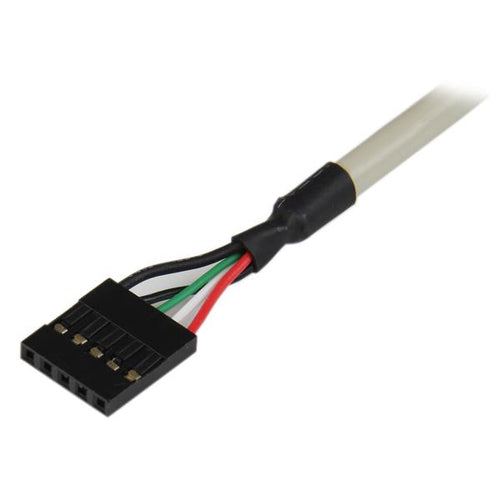

- Two standard A-type USB outlets mounted on a plate with 11.25 inch (285.75mm) cable to the 5 pin connectors
- Supports 4 or 5 pin motherboard connections
- Separate cables support a single row of 8/10 pins or 2 rows of 4/5
- USB V2.0 compliant
Specifications
Ports & interfaces
| Connector 1 | 2 x IDC |
| Connector 2 | 2 x USB A |
| Connector 1 gender | Female |
| Connector 2 gender | Female |
| Cable length | 0.286 m |
Performance
| Product colour | Silver |
Certificates
| Compliance certificates | RoHS |
| Certification | CE, UL, REACH |
Weight & dimensions
| Width | 287 mm |
| Depth | 55 mm |
| Weight | 120 g |
Packaging data
| Package width | 125 mm |
| Package depth | 225 mm |
| Package height | 19 mm |
| Package weight | 60 g |
Inner carton
| Quantity inner carton | 200 pc(s) |
Logistics data
| Products per master (outer) case | 160 pc(s) |
| Master (outer) case width | 372 mm |
| Master (outer) case length | 416 mm |
| Master (outer) case height | 282 mm |
